Peak-Only Bus Lane

Many streets with a trunkline role in the bus network have high demand at peak commute periods, but a rich array of goods movement and social life at other times. A peak-only bus lane allows transit to take precedence over parking and curbside access at peak hours when it most benefits bus operations.

A peak-only bus lane can operate as a dedicated bus lane at peak travel periods and provide general curbside uses at other times. Wider lanes can enable an effective bicycle lane off-peak adjacent to parking. Peak-only transit lanes may also be exclusive to streetcars or buses at peak times, while permitting mixed traffic at other times.

Application

Streets with predictable bus delay due to peak-period motor vehicle traffic, particularly due to queuing.

Streets with high peak-period bus frequency and generally high traffic volumes.

Streets with curbside loading, vending, high-turnover parking, or other important but physically flexible activities that can be relocated at some times.

Streets where offset lanes are not desired, such as where significant curbside transit stop improvements have been made.

Curbside peak-only lanes are most important on streets with one lane in each direction and parking. On commercial streets with more than one lane and parking, the assignment of a full-time or part-time offset bus lane with in-lane stop infrastructure may provide an advantage for both transit operations and local business and public life activity.

Peak-only lanes are not preferred on streets with narrow sidewalks and no sidewalk furnishing zone, as the absence of parking may place pedestrians uncomfortably close to traffic.

Benefits

Peak-only bus lanes provide a large boost to transit capacity at critical times, substantially improving both reliability and transit travel times on streets where congestion at peak causes transit delays.

Peak-only bus lanes allow stationary uses such as metered parking, freight loading, and street vending during non-peak periods.

Peak-only bus lanes are conducive to active transit signal priority treatments (see page <?>).

Wider lanes can accommodate off-peak bicycle lanes adjacent to curbside parking, and shared bus-bike lanes during peak periods.

Considerations

Curbside peak-only bus lanes involve a trade-off between faster peak travel times and slower off-peak bus travel times, with slower pull-out stops during off-peak times. Corridors without heavily peaked traffic volumes may be better off with bus bulbs, which have moderate benefits 24 hours a day, than with peak-hour bus lanes, which have larger benefits for two to six hours per day.

Curbside bus lanes typically preclude installation of curb extensions.

Because bus stops are typically located directly on the adjacent sidewalk, enough room must be available for waiting passengers, stop amenities, and passing pedestrian traffic.

Peak curbside lanes typically replace peak-period parking, and have neutral traffic impact or may even increase traffic capacity.

**During off-peak hours, peak-only bus lanes can permit general traffic or curbside access for activities like loading and parking.**

Critical

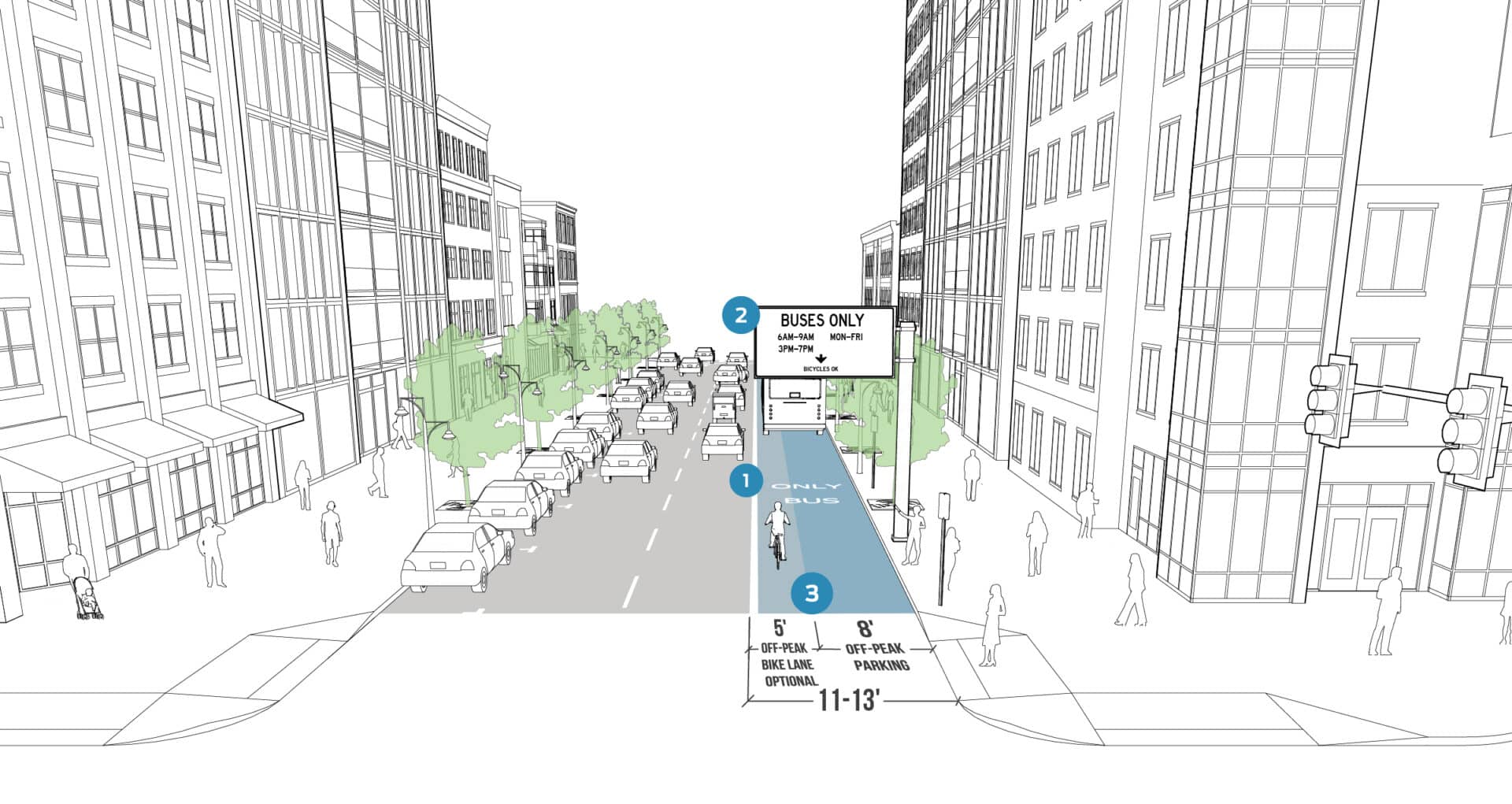

1Pavement markings must indicate that the lane is dedicated to transit, including a solid white line and “BUS ONLY” stencil. Skip-lines may be applied where vehicles are permitted to cross, such as at intersections and turn pockets (see Intersection Design for Transit).

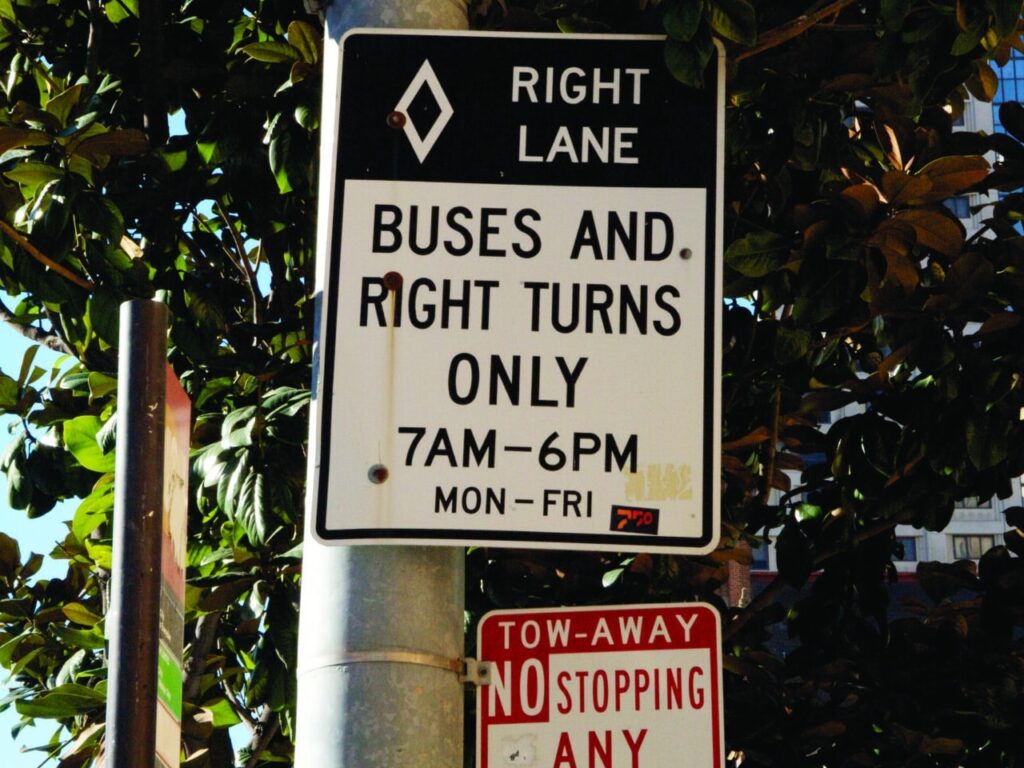

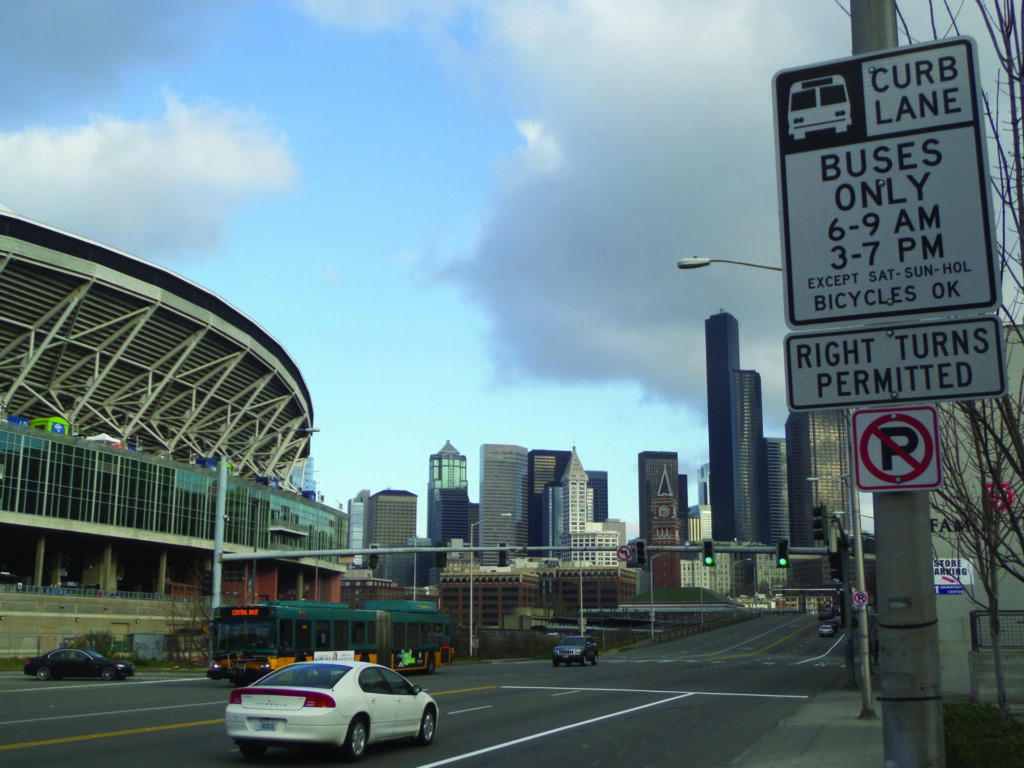

2Signage must clearly indicate the lane restriction, as well as hours of enforcement and any turn allocations.

If the lane permits parking during non-operational hours, signage should clearly communicate times of parking prohibition (e.g. “No Parking, 7–9 AM”) as well as any other parking regulations (e.g. “30 Minute Parking, 9 AM–4 PM”).

Optional

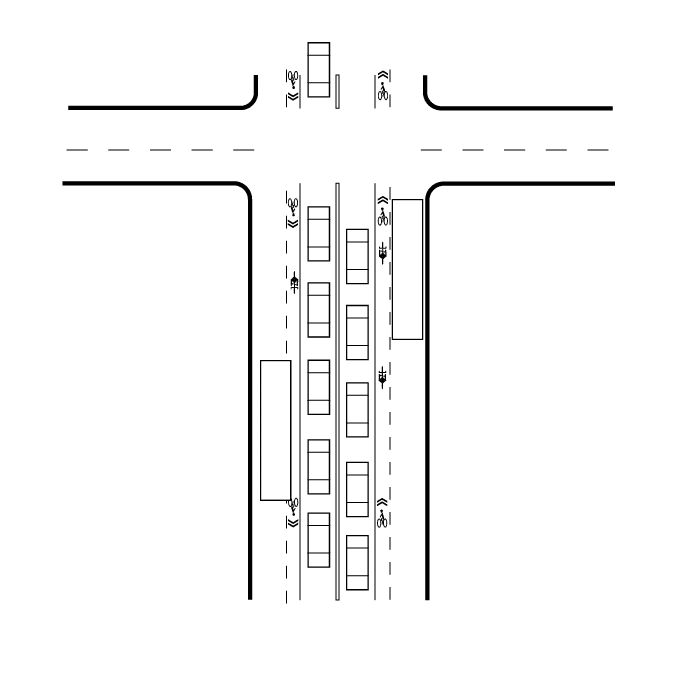

3During non-operational hours, the curbside portion of the lane may become a parking lane. A 12- or 13-foot wide lane can accommodate curbside parking with a bike lane during non-peak hours, and operate as a shared bus-bike lane during peak hours. Signage must communicate that bicycling is permitted at all times. Local regulation may need to be modified to permit bicycling in transit lanes.

Bicycle shared lane markings (MUTCD §9C-9) may be placed along the left edge of the bus lane to demarcate the bicycle space, and should be positioned along the roadway as they would be in other shared lanes (see the Urban Bikeway Design Guide for details).

A broken (dashed) line may be marked 7–9 feet from the curb, particularly at bus stops, to create an advisory bike lane designating the right edge of the bike operating space.
